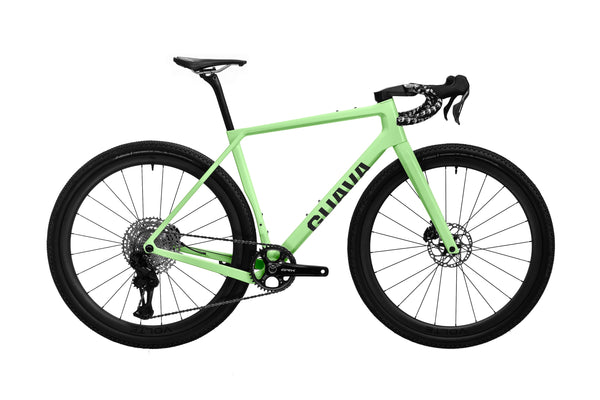

Guava ACE Di2
Our Ace frame was engineered to be fun and fast - pared down to have just 2 bottle mounts and a top tube bag mount - no frills, just a lightweight, fun bike to let you focus on riding.With 54mm of tire clearance and UDH derailleur this is an unstoppable speed demon.
This frame is lower and longer than our Spot, but for those who want to reach a more aggressive position, we've developed our own proprietary XX steam and handelbar - a two-piece integrated system that allows you to choose your stem size from 60 - 80 - 100 - or 120mm, as well as a choice of two bar widths. Dial in your fit better than any other handlebar system out there.
This model features Shimano Di2 wireless shifting, 13 speeds with a huge gear range, fast shifting and powerful braking. Guava's new Volte Gravel wheels are 38mm high with 29mmm internal width, handbuilt with Sapim spokes and mounted with 50mm Pirelli tires. Guava carbon seat post and a Selle Italia Flite saddle with carbon rails round out this build. Light, strong, fast.
Quick Features
Guava carbon XX Stem+Handelbar, Shimano Di2 827 Shifting, Volte Carbon Wheels, Tubeless installed
Size Guide Guava Spot
Sizing
Insert your height and inseam in the sizing calculator. Refer to our geometry table for detailed measurements on each size. If you are not sure, get in touch with us.
If you are between two sizes, don't worry - both sizes will work. A larger size will give more stability, and a smaller size can give you a more control and comfort.
How to measure
Height: top to bottom! Best practice is to stand straight against a wall.
Inseam: The way the old racers do it: standing against a wall, slide the book in between your legs, as far up as it will go. Measuring from the floor to top of your book - you have your inseam.
Size calculator
What are color options?
ACE Geometry
| Size | Seat Tube | Eff. Top Tube | Head Tube | Chainstay | Front Center | Wheelbase | HT Angle | ST Angle | Stack | Reach | BB Drop | Fork Rake |
| XS | 450 mm | 529 mm | 110 mm | 425 mm | 584 mm | 1002 mm | 70.5 ° | 73 ° | 532 mm | 366 mm | 74 mm | 48 mm |
| S | 470 mm | 546 mm | 130 mm | 425 mm | 603 mm | 1022 mm | 70 ° | 73 ° | 551 mm | 378 mm | 74 mm | 48 mm |
| M | 495 mm | 565 mm | 150 mm | 425 mm | 618 mm | 1036 mm | 70.5 ° | 73 ° | 572 mm | 390 mm | 74 mm | 48 mm |
| L | 520 mm | 583 mm | 170 mm | 425 mm | 631 mm | 1050 mm | 71 ° | 73 ° | 593 mm | 402 mm | 74 mm | 48 mm |
| XL | 540 mm | 601 mm | 190 mm | 425 mm | 650 mm | 1069 mm | 71 ° | 73 ° | 612 mm | 414 mm | 74 mm | 48 mm |
Technical Specs Guava ACE Di2
Components
| Crankset |
Shimano GRX 820 |
| Rear derailleur |
Shimano GRX 827 Di2 |
| Cassette |
Shimano SLX M7100 |
| Shifters |
Shimano GRX 820 Di2 |
| Seatpost |
Guava carbon seat post 27.2mm 10mm layback |
| Handlebar |
Guava XX carbon fiber stem and handlebar |
| Saddle | Selle Italia Model Y |
| Wheels |
Volte Level 38mm carbon, tubeless installed, 29mm internal width |
| Tires | Vittoria T50 50mm - Tubeless Installed |
Tech Specs
- Bike weight <8.4 kg (size M without pedals)
- 2 bottle mounts with titanium bolts
- 1 top tube feed bag mount
- No racks mounts - this is for going fast!
- Flat mount hydraulic disc brakes
- 142/100 x 12mm through axle
- 27.2mm seat post
- T47 threaded bottom bracket
- Headset spec IS 52 | IS 52
- Tire clearance 700c x 54mm
Why buy a Guava
- We focus only on gravel! All of our company DNA is focused on creating the best gravel riding experience.
- Customise your bike! All bikes are painted and assembled to order in Barcelona.
- Choose your color - 12 color combinations to choose from, and custom paint available if those aren't enough.
- Fast technical support world-wide to get you up and running as fast as possible.
- An excellent bike at an excellent price, we think it's one of the best values around.
- Join the Guava community! Ride with us in Barcelona, Girona, or one of our events around the world. Check our event calendar for news.
FAQs
If you don’t see your questions below, please send us a mail!
Q: What is the warranty on my Guava?
A: All Guava frames are guaranteed for 5 years against manufacturer defect. This does not include crashing, cosmetic damage, and normal wear and tear.
Q: How long does it take to ship my bike?
A: Our standard lead time to paint and assemble a bike is 2 weeks! This may change slightly due to order volume.
Q: Does my bike come fully assembled?
A: All bikes come fully assembled and ready to ride, you just need to insert both wheels, insert the seat post to your height and tighten the seat clamp, and turn and tighten the handlebar in the correct position. Please check our unboxing video and information here (coming soon)
Q: Do you have a crash replacement policy?
A: We definitely do. Send us an email if such a problem arises.
Q: What is your return policy?
A: Our shipments are insured against any damage – any damage caused by shipment must be communicated to the shipping company within 48 hours and will be repaired or replaced by Guava. In addition, all Guava products have a 30-day return policy. In order to be able to be returned, item in question must be in new condition and free from damage.
