The New Integrated Guava XX Stem and Handlebar
Integraded carbon bars are everywhere now. But most of them present a huge problem - how to have the stiffness and ride quality of an integrated system, but still get your own fit. Our new XX (dos equis) bar and stem is a proprietary 2-piece system that offers four stem lengths - 60 - 80 - 100 - 120. Handlebar position designed with our pro gravel riders, and looks amazing!

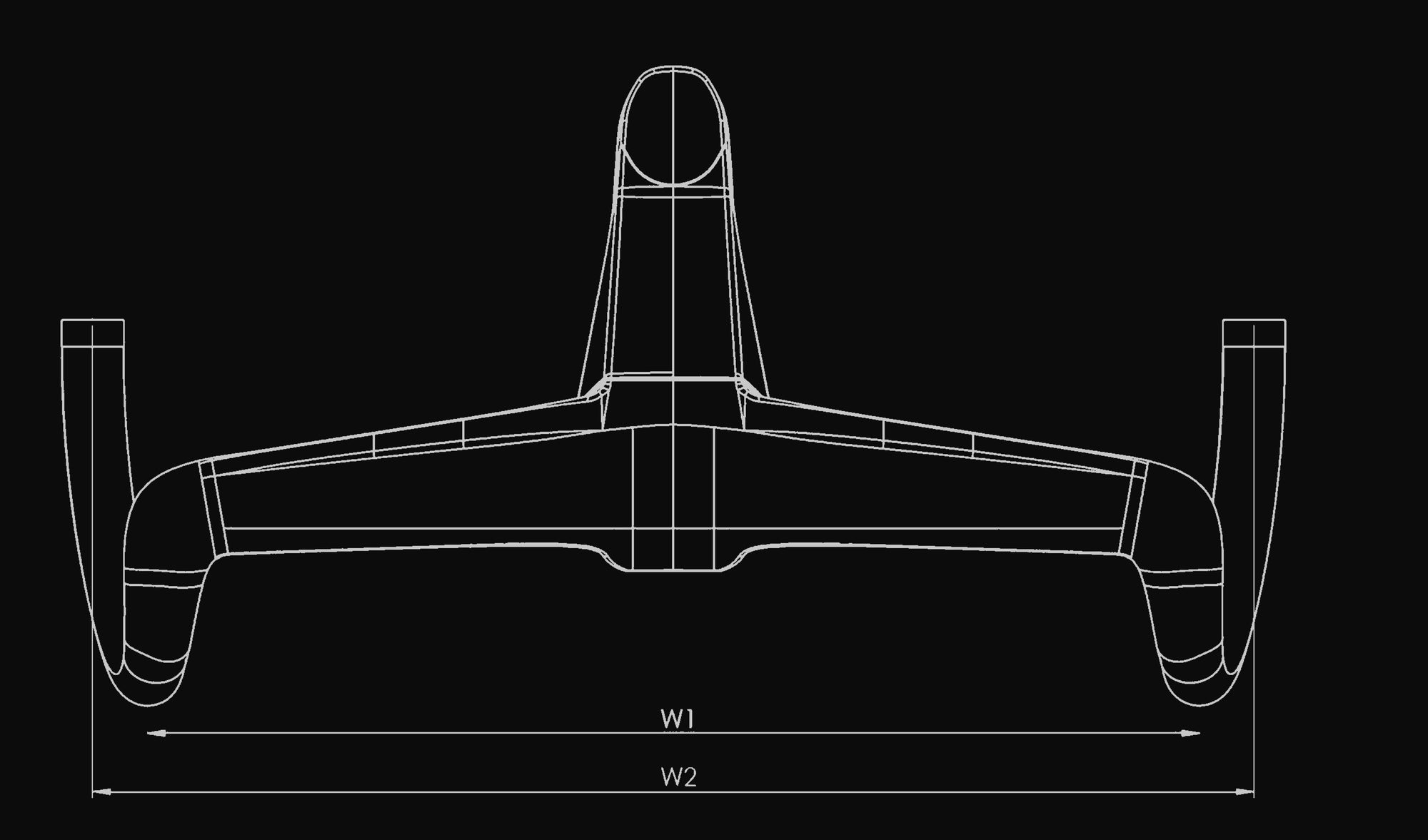

XX Handlebar Geometry
| Width | 400mm | 420mm |
|---|---|---|
| Width at drop (W2) | 442 | 462 |
| Drop | 105 | 105 |
| Reach | 77mm | 77mm |
| Backsweep | -4.6º | -4.6º |
| Flare | -15º | -15º |
| Rise | 0 | 0 |

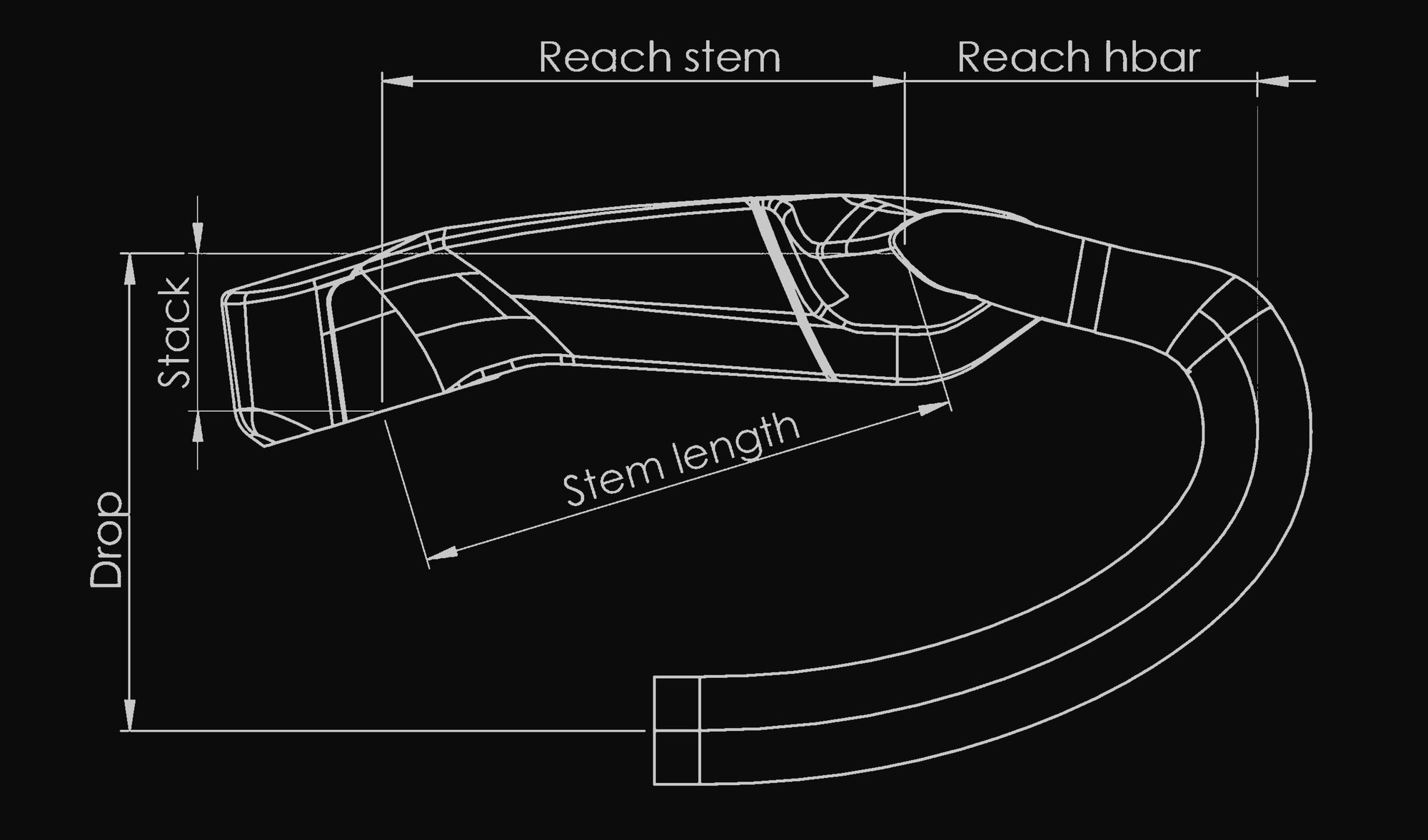

XX Stem Geometry
| Stem | 60 | 80 | 100 | 120 |
|---|---|---|---|---|
| Reach | 49,0 | 72,1 | 93,8 | 114,9 |
| Stack | 34,7 | 34,7 | 34,7 | 34,7 |
